Antenna-Embedded ICS Repeaters

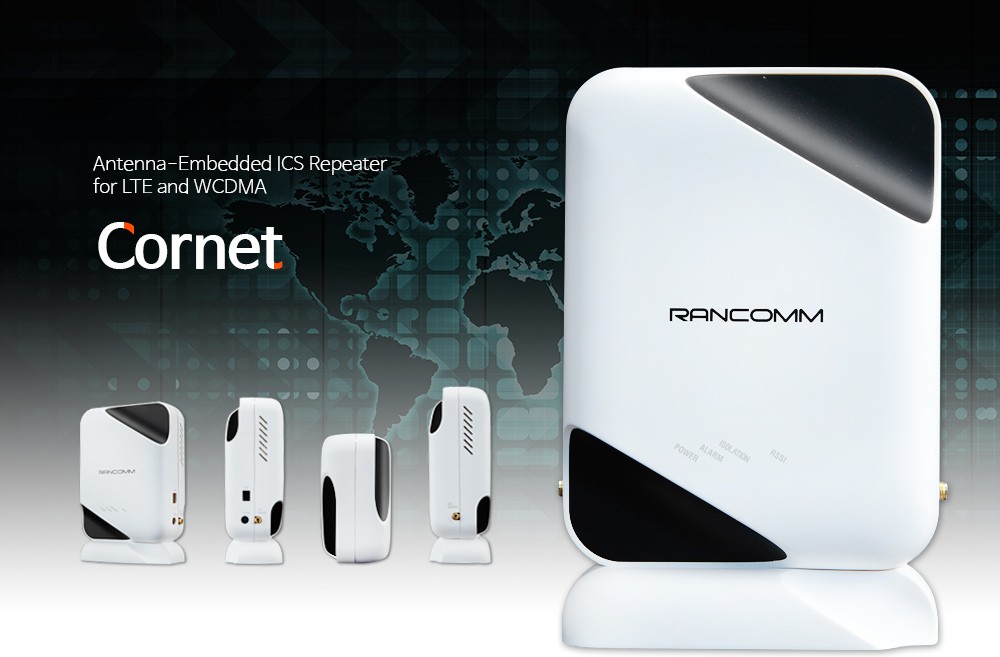

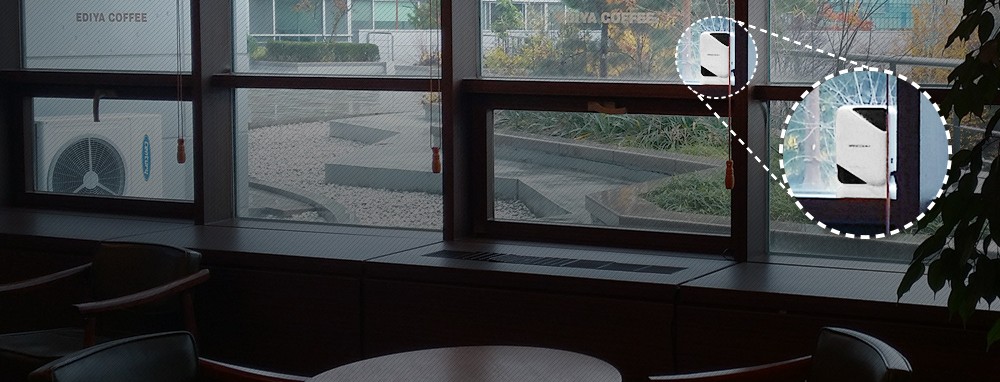

The Cornet is an antenna-embedded Pico-class ICS repeater designed for in-door coverage such as home, offices, restaurants and shops. With the plug-and-play and auto-configuration features, the Cornet is also a user-installable, simple-to-use coverage solution. The Cornet has an internal donor antenna and an internal service antenna inside the enclosure, but it also has external antenna ports so that it can be used with a combination of internal antenna and external antenna, or used with external donor antenna and service antenna. When external antenna is attached, the Cornet automatically recognizes it to change gain and to switch the antenna. By eliminating expensive installation works and efforts, the Cornet achieves the most economical coverage solutions, providing incomparable performance in its quality of service. The Cornet can be customized to process 5MHz, 10MHz, 15MHz or 20MHz LTE signals or up to 4 carriers of WCDMA signals in the 1700MHz to 2400MHz frequency band.
- 70dB (Int. Ant.)/ 75dB (Ext. Ant.) Gain
- 13dBm (DL) / 10dBm (UL) output power
- Automatic mode switching when external antenna is attached
- Max. 20MHz processing bandwidth for 20MHz LTE and 5MHz WCDMA 4 carriers
- Low power consumption
- Light weight and small footprint for easy installation
| Item | Specification | Comments |
|---|---|---|
| Frequency Range (UL) | 1700~2400 MHz | Customizable |
| Output Power (UL) | ≤13dBm | |
| Output Power (DL) | ≤10dBm | |
| Gain (Int. Ant) | ≤70dB | |
| Gain (Ext. Ant) | ≤75dB | |
| Noise Figure (UL) | 6dB | @max. gain, ICS enabled |
| Group Delay | 3.0us~ 3.9us. | Depends on other requirements |
| Max. Input Power without Damage | 0dBm | |
| Error Vector Magnitude | < 8% | @max. output, ICS enabled |
| Gain Flatness | ±1.5dB | |
| Gain Control Range | 30dB | |
| Cancellation Performance | PFeedback /PInput ≤ 15dB | @max. gain, EVM < 8% |
| Out-of-band Gain | 3GPP TS 25.106 and 3GPP TS 36.106 compliant | |
| Spurious Emission | ||
| Spectral Emission Mask | ||
| Inter-modulation | ||
| PCDE | ||
| Frequency Stability | ||
| Adjacent Channel Rejection Ratio | ||
| Internal Antenna Gain | > 5dBi | Each of donor and service ant |
| LED Indications | Input Strength (RSSI) | RSSI is indicated by 5 LED’s. |
| Isolation | ||
| System Failure | ||
| Power (AC/DC) Fail | ||
| Interface for Local Maintenance Terminal | Standard Mini USB | GUI based S/W for PC |
| Type of RF Connectors | SMA Female | External antenna ports |
| AC Power Voltage | AC 100~240V | |
| DC Power Consumption | < 10W | @ ICS enabled, max power |
| Weight (excl. AC/DC adapter) | < 990g | Foot stand included |
| Size | 182(L)x120(W)x66(D) |
