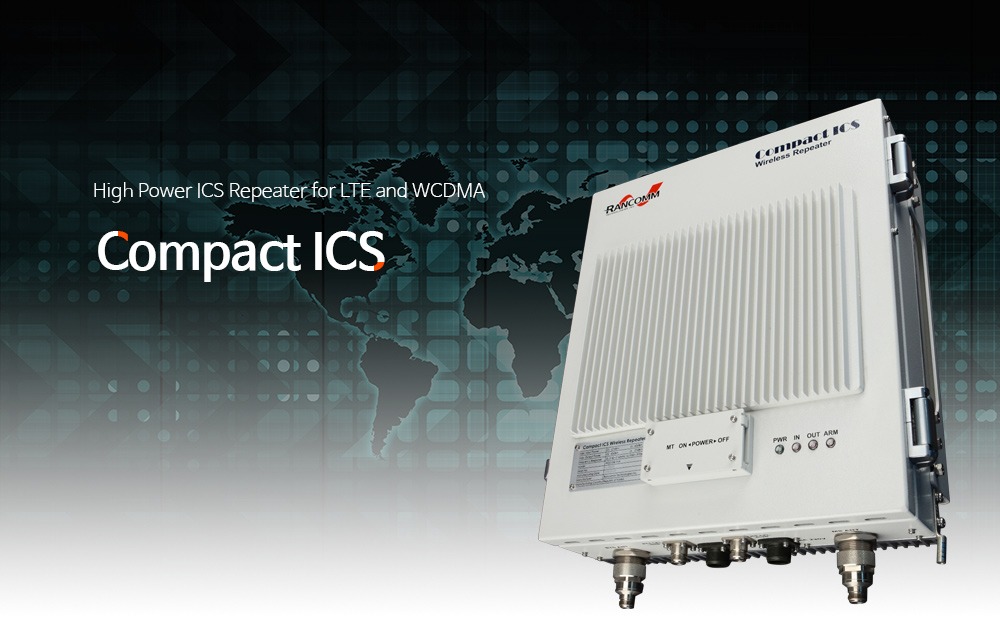

High Power Outdoor ICS Repeaters
The Compact ICS series is the most economical and effective solution for outdoor coverage with high RF-efficiency and robust feedback cancellation. It provides significantly reduced power consumption and high stability in operation by realizing the lowest CAPEX and OPEX properties, thereby providing reduced total cost of ownership for operators.
The Compact ICS series of Rancomm can process LTE, WCDMA and CDMA signals simultaneously in multi-mode (i.e. each of the carriers is separated) or mixed mode (i.e. carriers overlap) operation, so that eliminating shadow regions becomes simple and easy even in the phase of migration from 3G to 4G.
Features
- 95dB Gain, 43dBm (DL)/30dBm (UL) output power
- Max. 20MHz processing bandwidth for 20MHz LTE and 5MHz WCDMA 4 carriers
- Multi-stage self-oscillation protection
- Longer battery backup time with less than 190W power consumption
RF Specifications
| Item | Downlink | Uplink | Comments |
|---|---|---|---|
| Air Standard | WCDMA, CDMA and/or LTE | ||
| Frequency Band | 2140-2160 (Customizable) | 1950-1970 (Customizable) | |
| Processing Bandwidth | 20MHz | ||
| In-band Flatness | < 3.0dBp-p | ||
| Output Power Stability | < 2.0dB / 20MHz | ||
| Input/output VSWR | < 1 : 1.5 | ||
| Input/output Impedance | 50Ω | ||
| Frequency Stability | < 0.01ppm | ||
| Maximum Output Power | 43dBm ±1dB | 30dBm ±1dB | |
| Input Power | -52~-22dBm/total | -65~-35dBm/total | |
| Maximum Gain | 95dB ±1dB | ||
| Gain Control Range | 30dB | ||
| Gain Step/Accuracy | 1dB/±0.8dB | ||
| Noise Figure | < 4dB @ Max. Gain | ||
| Processing Latency | 3.8~5.0us (Depends on other requirements) | ||
| ACLR | 3GPP TS 25.106 and 3GPP TS 36.106 compliant | ||
| ACRR | |||
| Out of Band Unwanted Emission (WCDMA) | |||
| Operating Band Unwanted Emission (LTE) | |||
| Spurious Emission | |||
| Out of Band Gain | |||
| Size | 360mm(W)*460mm(H)*180mm(D) | Excl. mounting bracket | |
| Weight | < 28Kg | ||
